2510 5240 Male And Female Air Docking Medical Wiring Harness 2.5mm Pitch Terminal Wire
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-M007 |
| Application | Medical Equipment |
| Connectors | 2.54mm pitch 6pins or Customized |
| Wire | 18-32awg |
| Wire length | 90mm or According to the customers' requirements |
| Wire Color | Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
What should be paid attention to when processing the customized wiring harness connection wire:
The connection wire is one of the types of electronic wiring harnesses, which are widely used in different industry electronic equipment fields, such as electric vehicles, household appliances, communication equipment, automation equipment and other electronic equipment. The electronic wiring harness connection wires with different functions have different production standards The details include wire specifications, thickness of connecting wires, material of electronic wiring harness, etc.
1. Some irregular manufacturers use recycled PVC for the insulation layer and recycled copper, copper-clad aluminum, steel wire or several kinds of hybrids for the core conductor. The large internal resistance of these types of conductors is very harmful to electronic equipment, so you must pay attention when choosing.
2. The insulation layer of the regular connecting wire must be made of brand new anti-oxidation PVC plastic. The core conductor is made of oxygen-free copper, tinned copper or silver-plated copper, etc., which must be manufactured through multiple processes and precision equipment.
3. The high-quality connecting wire must not only have good insulation and heat resistance, but also the core conductor must be twisted or braided in order to have enough density to reduce the resistance value, capacitance and inductance, and output enough electricity flow.
4. Judgment of the quality of the connection wire can not only look at the appearance size, more importantly, look at the thickness of the copper core inside. Because some connecting wires make the rubber skin extremely thick and the copper core is very thin, it is mainly necessary to confirm from the size of the copper core cut surface.
Why Choosing us?
1. Achieve win-win
2. Competitive price
3. In time service
4. Product warranty
5. Rich experiences
6. High Quality
7. Lead time:7-10 days
8. Offer technology support.
9. Professional and experienced engineers
We can produce series of wire harnesses:
1. Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
2. Electrical cable and wire harness
3. Audio,Video,Radio cable and iso wire harness
4. Industrial wire cable harness
5. Home appliance wire harness
6. Fuse wire,game machine wire harness
7. Power,LVDs,Flat RCA,USB cable harness
8. Control and panel wiring cable assemblies
9. Medical equipment cable and harness
10. Airplane models wire harness
Shipping:
1. FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.
Product Tags:
|
|

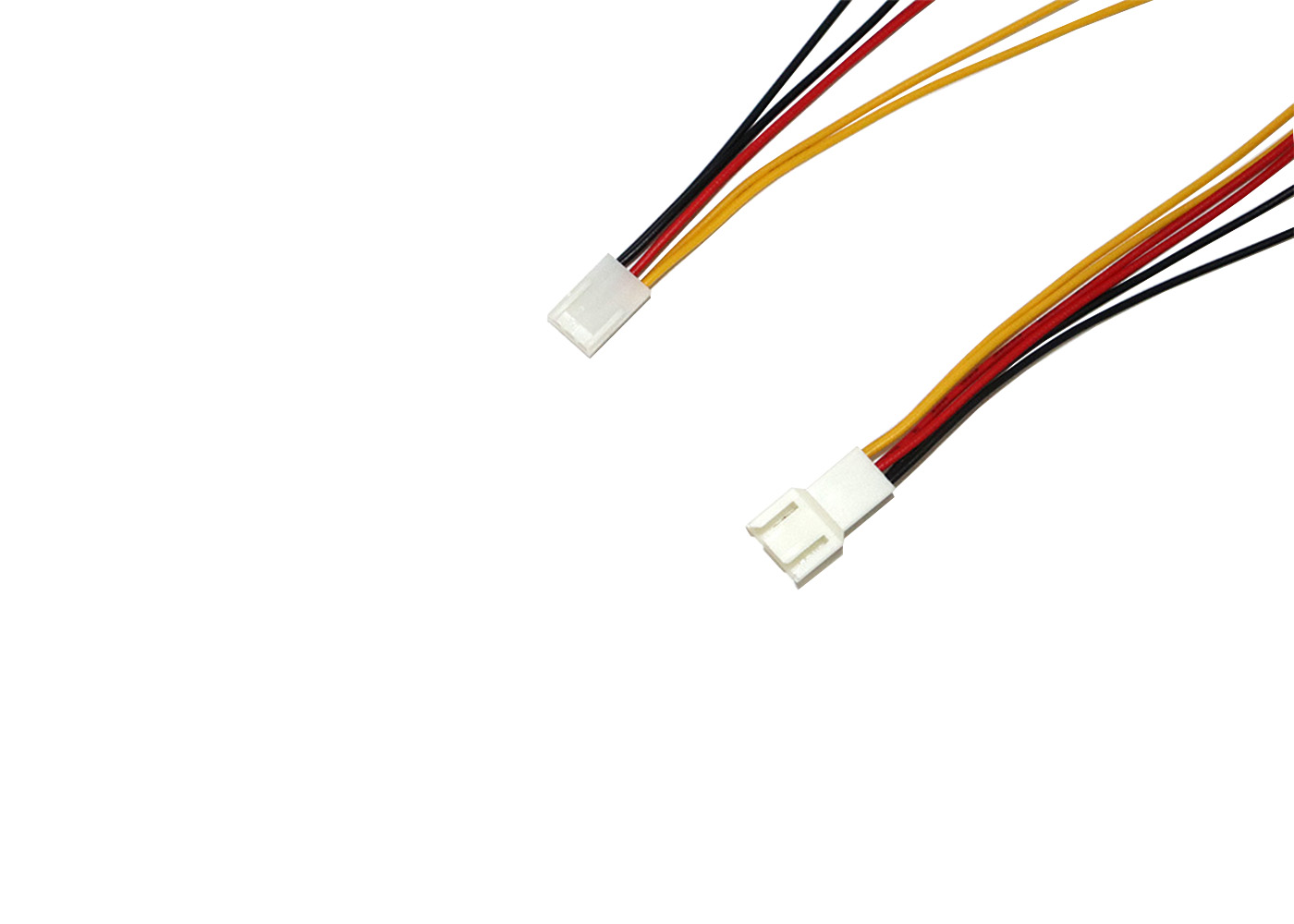

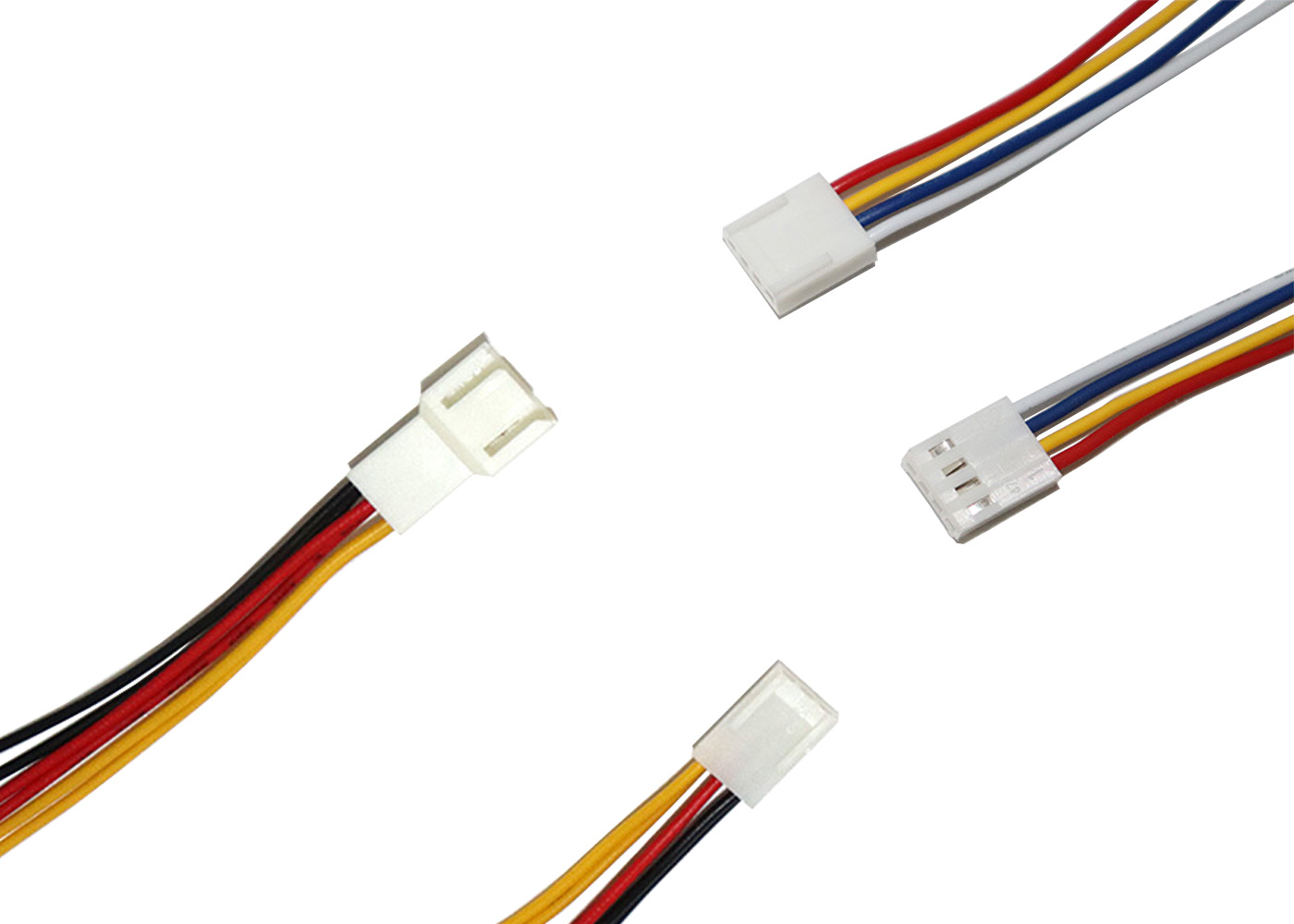

Male And Female Air Docking 2.5mm Medical Wiring Harness Images
|
